Turnstiles

---

 Originally designed for an underground tunnel, the 3/4 height turnstile has become a popular option for applications where limited headroom precludes the use of traditional full height turnstiles , but where the client requires a more secure alternative to half height units. The reduced height allows turnstiles  to be assembled in site access cabins, for example, and still allows the head mechanism to be accessed for maintenance purposes.

The fully welded steel construction is designed to provide an extremely robust product for extended use in high traffic applications.

The 3/4 height unit is available in the same colour combinations, logos and access control mounting solutions as our gull height units.

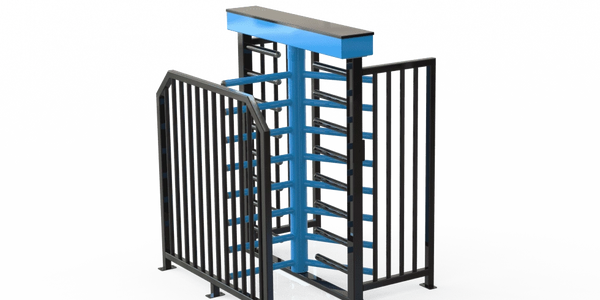

 Designed to provide effective pedestrian access control to high traffic locations such as construction sites and factory entrances, the D4150 turnstile is both attractive and economically priced.

These turnstiles have a solenoid operated mechanism mounted in the fully enclosed overhead structure, which allows the unit to be configured as bi-directional or single direction operation. The control system allows connection to any access control system or to a fire alarm to provide free rotation in the event of an alarm. The turnstile features a 120° three rotor design providing maximum space for pedestrian transit. Access control reader mounting plates are also provided at no extra cost to both sides of the turnstile.

The unit is powder coated for maximum longevity, and is available in a wide range of standard colours. For construction sites and temporary colours, we offer a steel base with fork lift pockets to allow turnstiles  to be relocated.
